Diamond Pedals Memory Lane

Diamond Pedals Memory Lane

$329.00 CAD
$329.00 CAD
Sale Sold out
Shipping calculated at checkout.

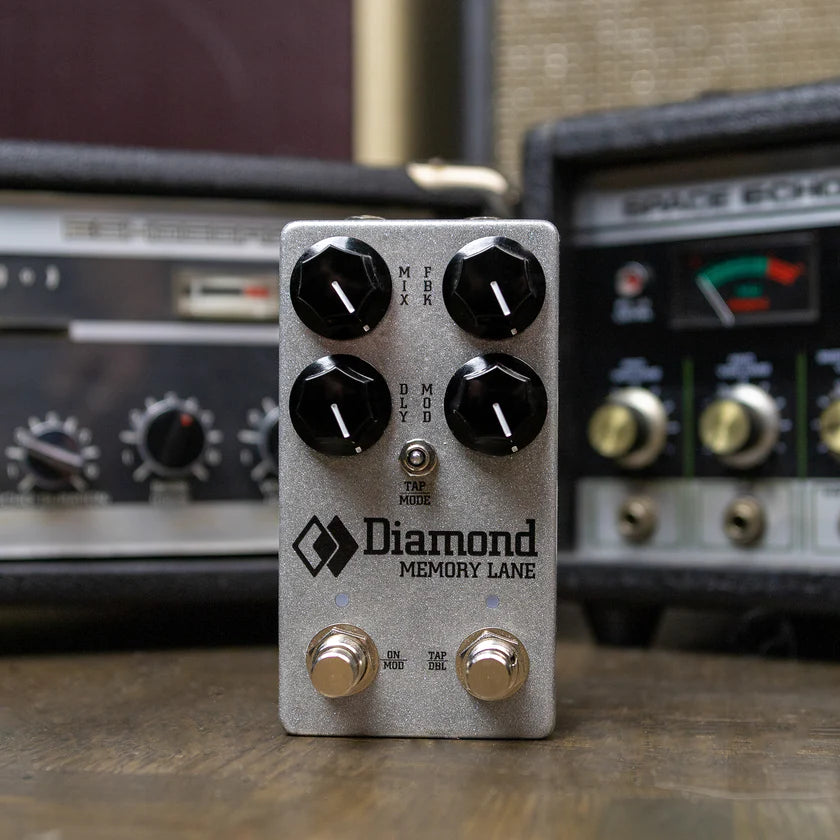

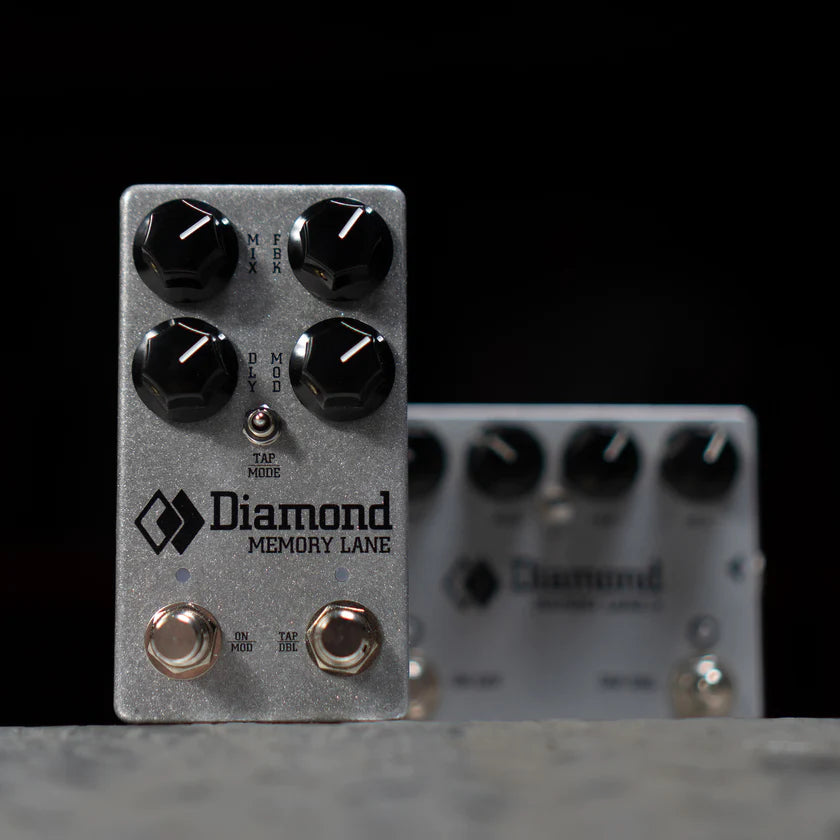

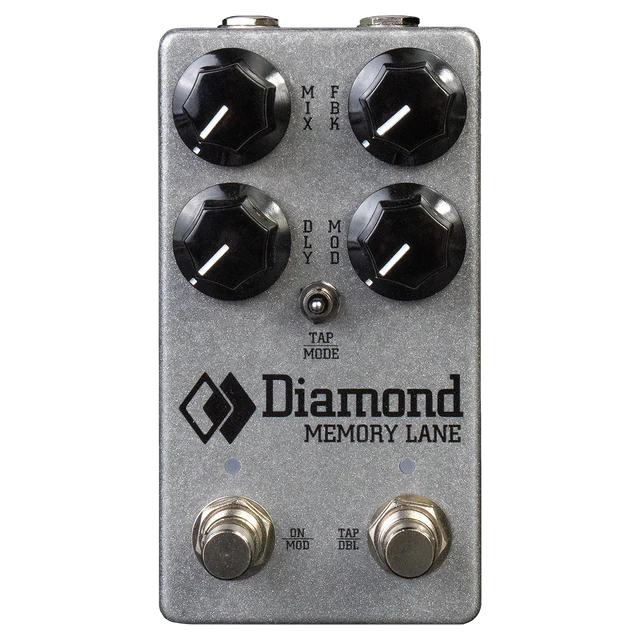

Memory Lane by Diamond Pedals



The Saga Continues. The dBBD Delay



Blending analog companding, anti-aliasing|reconstruction filters with a bucket brigade style delay line, we have immaculately captured the ethereal essence of the original big-box Memory Lane using Diamond’s innovative digital Bucket Brigade Delay technology (dBBD). Basically what we’re saying is, you get all the goodness of the original Memory Lane in a smaller footprint, over double the delay time, extended frequency response, higher SNR, and at a fraction of the current draw.

This innovative progression of the Memory Lane is defined by 3 distinct delay lines to offer modern or vintage sounds.



Original Circuit

The Memory Lane Jr. circuit reincarnated. Our original compander equipped dBBD delay line delivering up to 1200ms of lush, modulated repeats.



Three Distinct Delay Modes

The Memory Lane's original fixed sampling rate delay line has been augmented with a new warm delay mode offering vintage BBD style variable sampling rate, warmer repeats and a 1200ms maximum delay time for gorgeous ambient delays as well as a new vintage mode designed to capture the magic of analog BBD delay pedals. Variable sampling rate, snappier repeats and 50ms-550ms delay times inspired by yesterday's big box delays.







PEDALBOARD MASTERING

Combining silky smooth, natural optical compression with our signature hi-fi inspired, centre-detent active tilt EQ and Mid boost/cut control, the Comp/EQ is a mastering solution for your effects chain....one you might never turn off.



THE NEW STANDARD

For the modern pedal-user's needs. Space saving design, without any loss of quality. Complete with all analog, Burr-Brown audio path, top-mounted jacks, 9-18VDC operation and relay based true bypass switching.





Warranty Info

All Diamond products purchased through the diamondpedals.com website or our authorized dealers come with a three-year warranty against failure resulting from defective parts and/or faulty workmanship. Cosmetic flaws or issues related to wear and tear are not covered.


The warranty applies only to the original owner of the product and is not transferable. Warranty coverage terminates three years after the owner receives the product. While a product is under warranty, the product will be repaired free of charge. The owner of the product will be responsible for both shipping to and from Diamond Pedals. Warranty coverage will be automatically canceled should the product be tampered with, modified, abused, damaged through misuse, repaired by an unauthorized third party, or damaged through failure to follow the operating instructions.

USE OF AN IMPROPER POWER SUPPLY WILL VOID THE WARRANTY
